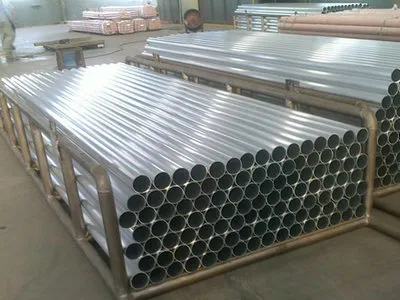

Aluminium 5083 Pipes

Aluminium 5083 pipes are available in a wide range of sizes and shapes to suit a variety of applications. They are lightweight, corrosion resistant and possess high strength-to-weight ratio. Aluminium 5083 pipe is known for its exceptional performance in extreme environments. 5083 Aluminium Pipe is an aluminium alloy by means of magnesium and outlines of chromium and manganese. It is extremely defiant to attack by industrial chemicals and seawater. Aluminium Pipes 5083 keeps hold of excellent strength after welding. It has the uppermost power of the non-heat treatable alloys. However, is not suggested for the usage in temperatures in surfeit of 65 degree Celsius. It has excellent resistance to both saltwater and freshwater corrosion, making it ideal for marine, industrial and structural applications. It is also weldable and machinable, making it ideal for custom fabrication projects. Aluminium 5083 pipes are available in a variety of finishes, including anodized, mill finish and powder coated.

Aluminium 5083 Pipes Specifications

Standards : ASTM B345, B241, B429 / ASME SB345, SB241, SB429
Size : 8 (1-1/2″ / 1.900″)
Outer Diameter : 1″ through 16″
Length : Double Random, Single Random, Cut Length
Thickness : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
End : Plain End, Beveled End, Threaded
Type : Seamless / ERW / Welded
Wall Range : 0.095″ – 1.000″ (.2.5-25mm)
OD Range : 1.250″ – 6.000″ (30-150mm)

Aluminium 5083 Pipes Equivalent Grades

STANDARD	UNS	WERKSTOFF NR.
Aluminium 5083	A95083	3.3547

Aluminium 5083 Pipes Chemical Composition

Weight%	Al	Si	Fe	Cu	Mn	Cr	Mg	Ti	Zn	Other Each	Others Total
5083	Bal	0.40 max	0.40 max	0.10 max	0.40 / 1.0	0.05 / 0.25	4.0 / 4.90	0.15 max	0.25 max	0.05 max	0.15 max

Mechanical Properties of Aluminum 5083 Pipes

Properties	Proof Stress	Tensile Strength	Hardness Brinell	Elongation
Metric	125 Min MPa	275 - 350 MPa	75 HB	12 Min %
