Aluminium 2014 Angles

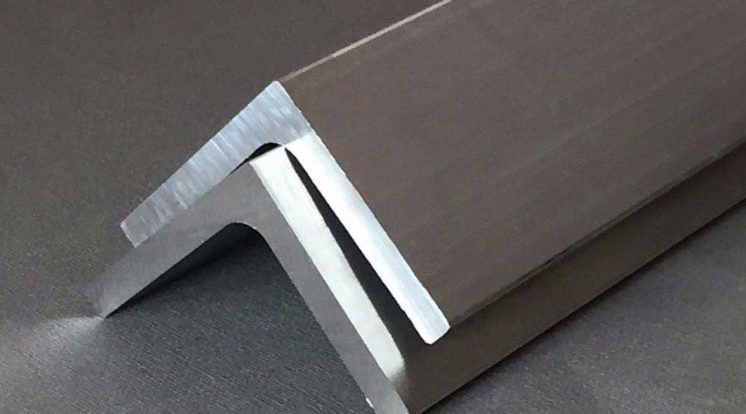

Aluminium 2014 Angles are manufactured from high-strength Aluminium Alloy 2014, a copper-based aluminium alloy known for its excellent mechanical strength, durability, and fatigue resistance. This alloy offers superior performance in demanding structural and engineering applications where high load-bearing capacity and reliability are essential. Aluminium 2014 Angle sections provide good machinability and are widely preferred for precision engineering, aerospace components, heavy-duty structures, transport equipment, and high-performance industrial frameworks. The alloy delivers a strong balance of strength and toughness, making it suitable for applications requiring enhanced mechanical properties compared to standard aluminium grades. Due to its excellent response to heat treatment, Aluminium Alloy 2014 Angles achieve higher strength levels and improved wear resistance. These angles are commonly supplied in various tempers such as T4 and T6, ensuring suitability for both structural and fabrication requirements. Surface finishes including mill finish, anodized, and machined finishes are available to meet specific project needs. Aluminium 2014 Angles are suitable for both indoor and outdoor applications where strength, dimensional accuracy, and long service life are critical. They are extensively used in aircraft fittings, heavy engineering structures, automotive components, defense applications, and industrial machinery. We supply Aluminium 2014 Angles in custom sizes, lengths, thicknesses, and tempers as per client specifications, ensuring high quality, consistency, and compliance with international standards for commercial and industrial projects.

Aluminium 2014 Angles Specification

Standards : ASTM B-209, EN573, and EN485
Thickness : 1 mm – 10 mm (custom thickness available)
Width : 10 mm × 10 mm to 200 mm × 200 mm (custom profiles available)
Length : 500 mm to 10,000 mm (Custom cut lengths as per client requirement)
Finish : Mill Finish, Machined Finish, Customer-Specific Finish
Type : Extruded / Rolled Sections
Temper :T4, T6, T451, T651
Surface : Anodized, Polished, Brushed, Matte Finish, Sand Blasted, Powder Coated, PVDF Coated (Decorative coatings such as wood grain available on request)

KEY FEATURES

High strength, heat-treatable, excellent machinability, aerospace approved, fatigue resistant, durable, ideal for structural load-bearing parts.

PRODUCT RANGE

2014 angle, forged 2014 angle, rolled 2014 angle, machined 2014 angle, heat-treated 2014 angle, T6 2014 angle, T651 2014 angle, precise tolerance 2014 angle, aerospace grade 2014 angle.

GLOBAL EQUIVALENTS

AA2014 (USA), ASTM B209/B221 2014, ASME SB209/SB221 2014, UNS A92014, EN AW-2014 (Europe), EN 573-3, EN 485, EN 755, ISO AlCu4SiMg, DIN AlCu4SiMg, Werkstoff 3.1255 (Germany), BS L168, BS L65 (UK – Aerospace Standard), GOST AK4-1, AK4-1T (Russia – Aerospace Alloy), GB/T 3190 LY12, LC4, LC5 (China), JIS H4000 A2014, JIS H4040 (Japan), AFNOR A-U4G (France), UNI 2014 (Italy), KS D6003 2014 (Korea), TSE EN 2014 (Turkey), SANS EN 2014 (South Africa), Mexico → AA/ASTM 2014, India → AA/EN 2014, GCC (UAE, Saudi, Oman, Qatar, Kuwait, Bahrain) → ASTM/EN 2014.

TEMPERS

2014-O, 2014-T3, 2014-T4, 2014-T351, 2014-T6, 2014-T651, 2014-T6511, 2014-T8, 2014-T81, 2014-T851, 2014-T79, 2014-T39

INDUSTRY APPLICATIONS

Aerospace structural components, aircraft fittings, defence parts, missile components, gears, shafts, fasteners, automotive suspension, heavy engineering, pressure vessels, high-strength machined parts.

BUYER KEYWORDS

2014 angle supplier, 2014 angle dealer, 2014 angle distributor, 2014 angle importer, buy 2014 angle, 2014 angle price per kg.

LOCATION KEYWORDS

2014 angle Mumbai, 2014 angle Pune, 2014 angle Delhi, 2014 angle Chennai, 2014 angle Bengaluru, 2014 angle Hyderabad, 2014 angle Ahmedabad, 2014 angle Kolkata, 2014 angle Dubai, 2014 angle Abu Dhabi, 2014 angle Sharjah, 2014 angle Doha, 2014 angle Muscat, 2014 angle Riyadh, 2014 angle Jeddah, 2014 angle Kuwait City, 2014 angle New York, 2014 angle Los Angeles, 2014 angle Houston

Aluminium 2014 Angles Equivalent Grades

European Standard	BS (OLD)	WNr	UNS	ISO	USA (AA)	GERMANY (DIN)	IS	Canadian
EN AW-2014	HE15	3.1255	A92014	AlCu4SiMg	2014	AlCuSiMn	24345	B26S

Chemical Composition Of Aluminium 2014 Angles :

Alloy	Si	Fe	Cu	Zn	Mn	Mg	Ti	Other	Cr	Ni	Others	Ti+Zr	Al
2014 (min) (max)	0.50 - 0.90	0.0 - 0.50	3.90 - 5.00	0.0 - 0.25	0.40 - 1.20	0.20 - 0.80	0.0 - 0.15	0.0 - 0.15	0.0 - 0.10	0.0 - 0.10	0.0 - 0.05	0.0 - 0.20	Balance

Mechanical Properties Of Aluminium 2014 Angles Exporters::

Alloy	Temper	UTS (Mpa)		Yield Strength (Mpa)		Elongation (%)
-	-	Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-2014	O	–	250	–	135	10
EN AW-2014	T4	370	–	230	–	11

Physical Properties of Aluminium 2014 Angles :

Property	Metric Value
Density	2.80 g/cm³
Melting Point	502°C – 638°C
Specific Heat Capacity (at 100°C)	880 J/kg·K
Thermal Conductivity	121 W/m·K
Electrical Resistivity	0.032 µΩ·m

OUR SPECIAL GRADES

1050	1060	1070	1100	2014
5005	5052	5754	5082	5083
5754	5083	5086	6061	6063
6082	6083	7050	7075
