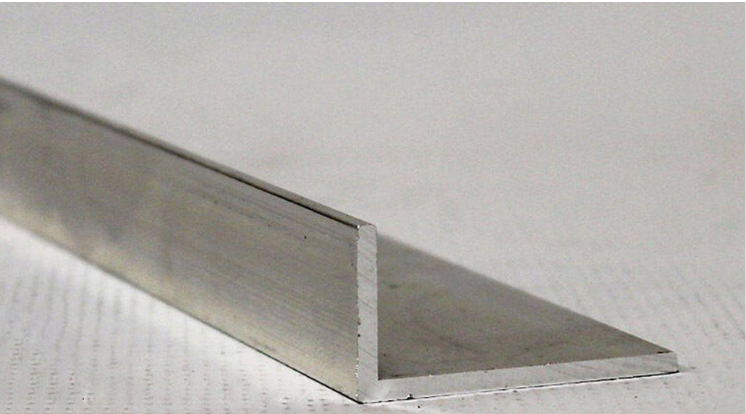

Aluminium 5005 Angles

Aluminium 5005 Angles are manufactured from Aluminium Alloy 5005, a non-heat-treatable, magnesium-based aluminium alloy known for its excellent corrosion resistance, smooth surface finish, and good formability. This alloy offers reliable performance in applications where appearance, durability, and resistance to environmental exposure are essential. Aluminium 5005 Angle sections provide good workability and moderate strength, making them ideal for architectural structures, decorative components, marine environments, signage, cladding systems, and general fabrication work. The alloy is especially valued for applications that require anodizing, as it produces a high-quality and uniform anodized finish. Aluminium Alloy 5005 Angles exhibit good weldability and are suitable for cold working processes such as bending, forming, cutting, and machining. Although it does not respond to heat treatment for strength enhancement, the alloy delivers consistent mechanical performance and excellent resistance to atmospheric and marine corrosion. These angles are commonly supplied in tempers such as H12, H14, and H24 to meet fabrication and structural requirements. Aluminium 5005 Angles are suitable for both indoor and outdoor applications and are widely used in architectural panels, building frameworks, transportation interiors, food processing equipment, chemical handling components, and marine fittings. Their lightweight nature and clean surface finish contribute to long service life with minimal maintenance. We supply Aluminium 5005 Angles in custom sizes, lengths, thicknesses, and tempers as per client specifications, ensuring high quality, dimensional accuracy, and compliance with international standards for commercial and industrial projects.

Aluminium 5005 Angles Specification

Standards : ASTM B209, EN 573, EN 485
Thickness : 1 mm – 10 mm (Custom thickness available)
Width : 10 mm × 10 mm to 200 mm × 200 mm (Custom profiles available)
Length : 500 mm to 10,000 mm (Custom cut lengths as per client requirement)
Finish : Mill Finish, Brushed Finish, Polished Finish, Customer-Specific Finish
Type : Extruded / Rolled Sections
Temper : O, H12, H14, H16, H18, H22, H24
Surface :Anodized, Polished, Brushed, Matte Finish, Sand Blasted, Powder Coated, PVDF Coated (Decorative coatings such as wood grain available on request)

KEY FEATURES

Excellent corrosion resistance, non-heat-treatable, superior anodizing quality, good formability, weldable, lightweight, durable, smooth surface finish, ideal for architectural and decorative applications.

PRODUCT RANGE

5005 aluminium angle, rolled 5005 angle, extruded 5005 angle, anodized 5005 angle, brushed finish 5005 angle, mill finish 5005 angle, H14 5005 angle, H24 5005 angle, corrosion resistant 5005 angle, architectural grade 5005 angle.

GLOBAL EQUIVALENTS

AA 5005 (USA), ASTM B209 5005, ASME SB209 5005, UNS A95005, EN AW-5005 (Europe), EN 573-3, EN 485, ISO AlMg1, DIN AlMg1, Werkstoff 3.3315 (Germany), BS 5005 (UK), GOST AMg1 (Russia), GB/T 3190 5005 (China), JIS H4000 A5005 (Japan), AFNOR AlMg1 (France), UNI 5005 (Italy), KS D6001 5005 (Korea), TSE EN AW-5005 (Turkey), SANS EN AW-5005 (South Africa), Mexico → AA/ASTM 5005, India → AA/EN 5005, GCC (UAE, Saudi, Oman, Qatar, Kuwait, Bahrain) → ASTM/EN 5005.

TEMPERS

5005-O, 5005-H12, 5005-H14, 5005-H16, 5005-H18, 5005-H22, 5005-H24, 5005-H26

INDUSTRY APPLICATIONS

Aerospace structural components, aircraft fittings, defence parts, missile components, gears, shafts, fasteners, automotive suspension, heavy engineering, pressure vessels, high-strength machined parts.

BUYER KEYWORDS

5005 aluminium angle supplier, 5005 angle dealer, 5005 angle distributor, 5005 angle importer, buy 5005 angle, 5005 aluminium angle price per kg.

LOCATION KEYWORDS

5005 angle Mumbai, 5005 angle Pune, 5005 angle Delhi, 5005 angle Chennai, 5005 angle Bengaluru, 5005 angle Hyderabad, 5005 angle Ahmedabad, 5005 angle Kolkata, 5005 angle Dubai, 5005 angle Abu Dhabi, 5005 angle Sharjah, 5005 angle Doha, 5005 angle Muscat, 5005 angle Riyadh, 5005 angle Jeddah, 5005 angle Kuwait City, 5005 angle New York, 5005 angle Los Angeles, 5005 angle Houston

Aluminium 2014 Angles Equivalent Grades

European Standard	BS (OLD)	WNr	UNS	ISO	USA (AA)	GERMANY (DIN)	IS	Canadian
EN AW-2014	HE15	3.1255	A92014	AlCu4SiMg	2014	AlCuSiMn	24345	B26S

Chemical Composition Of Aluminium 5005 Angles :

European Standard	BS (OLD)	WNr	UNS	ISO	USA (AA)	GERMANY (DIN)	IS	Canadian
EN AW-5005	HE30	3.3315	A95005	AlMg1	5005	AlMg1	5202	A95005

Mechanical Properties of Aluminium 5005 Angles Exporters

Alloy	Temper	UTS (MPa)		Yield Strength (MPa)		Elongation (%)
-	-	Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-5005	O	65	95	20	40	12
	H12	125	160	55	90	6
	H14 / H24	145	185	75	115	6

Physical Properties of Aluminium 5005 Angles :

Property	Metric Value
Density	2.67 g/cm³
Melting Point	605 – 650°C
Specific Heat Capacity (at 25°C)	900 J/kg·K
Thermal Conductivity	138 W/m·K
Electrical Resistivity	0.044 µΩ·m
