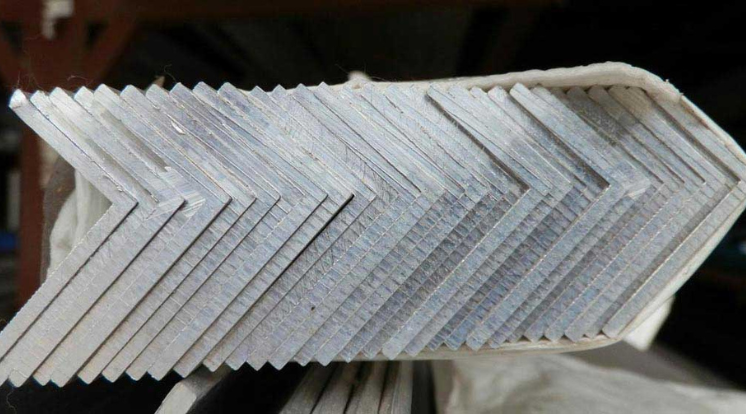

Aluminium Alloy 2024 Angles are manufactured from a high-strength aluminium-copper alloy known for its excellent fatigue resistance and superior mechanical properties. This grade is widely used in applications where high strength-to-weight ratio and structural performance are essential. Due to its robust characteristics and lightweight nature, Aluminium 2024 Angles are extensively used in aerospace structures, aircraft fittings, automotive components, defense equipment, and high-performance engineering applications. Aluminium 2024 is a heat-treatable alloy that develops exceptional strength through solution heat treatment and aging processes. It offers good machinability and fatigue resistance, though its corrosion resistance is lower compared to pure aluminium grades. For enhanced durability, the material is often supplied in clad form or with protective surface treatments such as anodizing or coating. The alloy performs reliably in high-stress environments where strength and structural integrity are critical. Aluminium 2024 Angles are available in various tempers such as T3, T4, and T6, and can be supplied in mill finish or with customized surface treatments as per application requirements. Suitable for demanding structural and industrial applications, these angles provide excellent load-bearing capacity and long service life. Custom sizes, thicknesses, lengths, and tempers can be provided according to specific project specifications.
ASME SB221 Aluminium 2024 L Angles, Aluminium Alloy 2024 L Angles, Aluminium Equal L 2024 Angles, Aluminum 2024 L Angles, Aluminium A92024 L Angle Supplier in Mumbai, T6 Temper Aluminum 2024 Unequal L Angles, ASTM B221 Aluminium 2024 Anodized L Angles Stockist, 2024 Aluminium L Angles Exporter.
ASME SB221 Aluminium 2024 T Angles, Aluminium Alloy 2024 T Angles, Aluminium Equal T 2024 Angles, Aluminum 2024 T Angles, Aluminium A92024 T Angle Supplier in Mumbai, T6 Temper Aluminum 2024 Unequal T Angles, ASTM B221 Aluminium 2024 Anodized T Angles Stockist, 2024 Aluminium T Angles Exporter.
| STANDARD | UNS | WERKSTOFF NR. |
| 2024 | A92024 | 3.1355 |
| Aluminium 2024 | Si | Fe | Cu | Mn | Mg | Zn | Ti | Cr | Al |
| 0.50 Max | 0.50 Max | 3.80 - 4.90 | 0.30 - 0.90 | 1.20 - 1.80 | 0.25 Max | 0.15 Max | 0.10 Max | Balance |
| Alloy | Temper | UTS (MPa) | % Elongation | |
| Min | Max | Typical | ||
| 2024 | O | 185 | 275 | 20 |
| T3 | 425 | 485 | 18 | |
| T4 | 425 | 485 | 16 | |
| T351 | 455 | 505 | 19 | |
| T6 | 460 | 510 | 15 | |
| Properties | Metric |
|---|---|
| Density | 2.78 g/cm³ |
| Melting Point | 500°C – 635°C |
| Thermal Conductivity | 121 W/m·K |
| Electrical Conductivity | 30% IACS |
| Specific Heat Capacity | 875 J/kg·K |
