Aluminium 7050 Angles

Filter
Filter

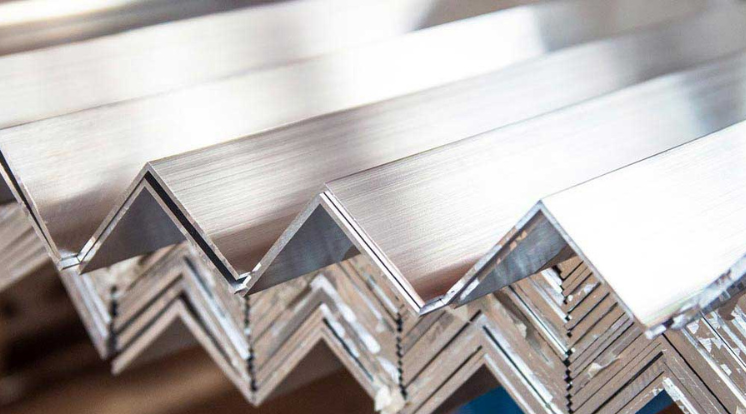

Aluminium 7050 Angles

Aluminium 7050 Angles are manufactured from Aluminium Alloy 7050, a heat-treatable, high-strength zinc-based alloy known for its exceptional mechanical properties, excellent stress-corrosion cracking resistance, and superior performance in critical structural applications. This alloy is specifically designed for high-load environments where strength, toughness, and reliability are essential. Aluminium 7050 offers extremely high strength combined with good fracture toughness and fatigue resistance, making it suitable for precision fabrication processes such as machining, drilling, and controlled forming. Being heat-treatable, it achieves outstanding mechanical performance through tempering, with common tempers including T7451, T7651, and T74, widely used in aerospace and high-stress structural components. Aluminium 7050 Angles are extensively used in aerospace structures, aircraft frames, wing components, defence equipment, high-performance machinery, and heavy-duty structural applications. Their superior strength-to-weight ratio, excellent resistance to stress corrosion, and long-term dimensional stability ensure reliable performance in demanding service conditions. We supply Aluminium 7050 Angles in custom sizes, lengths, thicknesses, tempers, and surface finishes as per client specifications, ensuring precise dimensional accuracy, consistent quality, and compliance with international aerospace and industrial standards.

Aluminium 7050 Angles Specification

  • Standards : ASTM B221 / B211 ASME SB221 / SB211, EN573, EN485, AMS 4003, AMS 4102
  • Thickness : 50 mm to 6000 mm Long
  • Width : 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm
  • Length : 1 To 6 Meters, Custom Cut Length
  • Finish : Mill, Customer specific finish
  • Type : Extruded / Rolled Sections
  • Temper : T3,T4,T5, T6, T651 T6511
  • Surface : Anodize, powder coating, electrophoresis, PVDF coating, wood grain painting, matted, etc

KEY FEATURES


Ultra-high strength, excellent fracture toughness, superior SCC resistance, heat treatable, fatigue-resistant, used extensively in aircraft and defence sectors


PRODUCT RANGE


7050 angle in T7451/T7651/T73651 aerospace tempers.


GLOBAL EQUIVALENTS

AA7050 (USA), ASTM B209/B221/B241 7050, UNS A97050, EN AW-7050 (Europe), EN 573-3, EN 485, AMS 4050 / 4342 / 4201 (Aerospace), ISO AlZn6CuMgZr, DIN AlZn6CuMgZr / Werkstoff 3.4144 (Germany), BS L160 / L163 (UK – aerospace), AFNOR 7075/7050 variants (France), JIS H4000 7050 (Japan), GB/T 3190 7050 (China) – LC7/LC9 variants, KS D6006 7050 (Korea), TSE EN 7050 (Turkey), SANS EN 7050 (South Africa), IS 737 (India – wrought aluminium), Hindalco aerospace 7050, Jindal 7050, Russian V95 (approx high-strength), GCC 7050 aerospace equivalents (UAE, Oman, Saudi).


TEMPERS

7050-T7451, 7050-T7651, 7050-T76511, 7050-T73651, 7050-T6, 7050-T7452, 7050-T7652.


INDUSTRY APPLICATIONS

Aerospace structures, wing fittings, fuselage frames, bulkheads, defence equipment, missile components, high-strength machined parts, landing gear components, pressure-critical parts.


BUYER KEYWORDS

7050 angle dealer, 7050 angle distributor, buy 7050 angle, 7050 aerospace alloy stockist, 7050 importer, 7050 defence-grade supplier.


LOCATION KEYWORDS

7050 angle Mumbai, 7050 angle Pune, 7050 angle Delhi, 7050 angle Chennai, 7050 angle Bengaluru, 7050 angle Hyderabad, 7050 angle Ahmedabad, 7050 angle Surat, 7050 angle Dubai, 7050 angle Abu Dhabi, 7050 angle Doha, 7050 angle Riyadh, 7050 angle Muscat.


RELATED SEARCHES

7050 vs 7075 angle, 7050 aerospace properties, 7050 machining behaviour, 7050 vs 2024 strength, 7050 heat treatment comparison.

Type of Aluminium Alloy 7050 Angles

Aluminium 1050 L Angles
Aluminium 7050 L Angles

ASME SB211 Aluminium 7050 L Angles, Aluminium Alloy L 7050 Angles, Aluminium Equal L 7050 Angles, Aluminum 7050 L Angles, Aluminium A97050 L Angle Supplier, T6 Temper Aluminum 7050 Unequal L Angles, Aluminium 3.4144 L Angles, ASTM B211 Aluminium 7050 Anodize L Angles Stockist, 7050 Aluminium L Angles Exporter.

Aluminium 1050 T Angles
Aluminium 7050 T Angles

ASME SB221 Aluminium 7050 T Angles, Aluminium Alloy T 7050 Angles, Aluminium Equal T 7050 Angles, Aluminum 7050 T Angles, Aluminium A97050 T Angle Supplier, T6511 Temper Aluminum 7050 Unequal T Angles, Aluminium 3.4144 T Angles, ASTM B211 Aluminium 7050 Anodize T Angles Stockist, 7050 Aluminium T Angles Exporter.



Aluminium 7050 Angles Equivalent Grades


UNS EN DIN,WNr ISO
A97050 EN3982 3.4144 AlZn6CuMgZr


Aluminium 7050 Angles Chemical Composition :


Weight % Zn Cu Mg Zr Fe Si Mn Ti Cr Others (total)
Minimum 5.7 2.0 1.9 0.08 - - - - - -
Maximum 6.7 2.6 2.6 0.15 0.15 0.12 0.10 0.06 0.04 0.15


Mechanical Properties of Aluminium 7050 Angles


Material Temper Tensile Strength (ksi) Yield Strength (ksi) Elongation in 2" %
Aluminium Alloy 7050 Angle (AMS 4340) T76511 79 69 7
Aluminium Alloy 7050 Angle (AMS 4340) T73511 70 60 8
Aluminium Alloy 7050 Angle (AMS 4342) T74511 73 63 7


Physical Properties of Aluminium 7050 Angles :


Property Metric Value
Density 2.83 g/cm³
Melting Point 477 – 635°C
Specific Heat Capacity (at 25°C) 870 J/kg·K
Thermal Conductivity 130 W/m·K
Electrical Resistivity 0.051 µΩ·m
