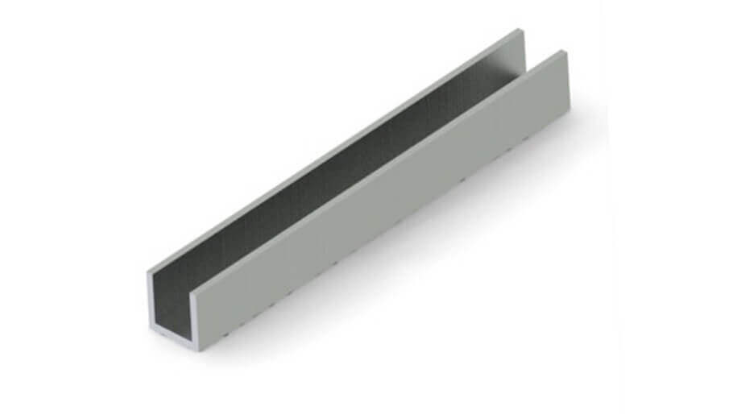

Aluminium 1200 Channels

Aluminium 1200 Channels are manufactured from Aluminium Alloy 1200, a commercially pure aluminum alloy containing a minimum of 99.0% aluminum. This alloy is well known for its excellent corrosion resistance, high thermal and electrical conductivity, and good ductility. Owing to its excellent formability, Aluminium 1200 is ideal for applications that require bending, shaping, and forming without cracking or loss of structural integrity. These channels are particularly suitable for environments where lightweight construction, corrosion resistance, and long-term reliability are essential. Aluminium 1200 channels offer very good workability and can be easily cut, drilled, machined, welded, and formed to meet a wide range of fabrication requirements. While the mechanical strength of Alloy 1200 is lower than that of heat-treatable structural alloys, its strong resistance to atmospheric and chemical corrosion makes it highly suitable for industrial and general-purpose applications. These channels are commonly supplied in O, H14, and H24 tempers, ensuring consistent dimensional accuracy, smooth surface finish, and dependable performance in precision-fabricated components. Applications of Aluminium 1200 channels include architectural and decorative structures, chemical and food processing equipment, electrical and electronic components, heat-exchange systems, roofing and cladding, transportation parts, and lightweight industrial frameworks. Its good corrosion resistance, excellent conductivity, and ease of fabrication make it suitable for applications requiring long service life under non-structural or moderate-load conditions. We supply Aluminium 1200 channels in custom sizes, lengths, thicknesses, tempers, and surface finishes as per client specifications, ensuring precise dimensional tolerances, consistent quality, and full compliance with international standards for industrial, architectural, and commercial channel applications.

Aluminium Alloy 1200 Channels Specification

Standards : ASTM B221, ASTM B209M, EN 573, EN 485
Thickness :0.5 mm – 6 mm
Width : 10 mm – 200 mm (Custom channel profiles available)
Length : Up to 6.5 meters (Anodized & Coated) , Up to 5 meters (Mill Finish)
Finish : Mill Finish, Customer-Specific Finish
Type : Hot-Rolled (HR) / Cold-Rolled (CR)
Temper :H14, H24, O
Surface : Anodized, Polished, Brushed, Matte, Sand Blasted, Powder Coated, PVDF Coated

KEY FEATURES

Excellent corrosion resistance, good forming ability, high ductility, reflective surface, food-safe aluminium, easy to fabricate, economical, widely used in packaging and HVAC

PRODUCT RANGE

1200 channel, hot rolled 1200 channel, cold rolled 1200 channel, anodized 1200 channel, mirror finish 1200 channel, polished 1200 channel, brushed 1200 channel, embossed 1200 channel, coated 1200 channel.

GLOBAL EQUIVALENTS

AA1200 (USA), ASTM B209 1200, ASME SB209 1200, UNS A91200, EN AW-1200, EN 573-3, EN 485-2/4 (Europe), ISO Al99.0 (International), DIN 3.0205, DIN Al99.0, Werkstoff 3.0205 (Germany), BS 1200A (British Standard), AFNOR A0 (France), UNI 1200 (Italy), GOST 4784 AD0 (Russia), GB/T 3190 1200, LF2, LD2 (China), JIS H4000 A1200, JIS A1200P (Japan), KS D4201 1200 (Korea), TSE EN 1200 (Turkey), SANS EN 1200 (South Africa), Mexico follows AA/ASTM 1200, India follows AA/EN 1200, GCC (UAE, Saudi, Qatar, Oman, Kuwait, Bahrain) uses ASTM/EN 1200.

TEMPERS

1200-O, 1200-H12, 1200-H14, 1200-H16, 1200-H18, 1200-H19, 1200-H22, 1200-H24, 1200-H26, 1200-H28, 1200-H32, 1200-H34, 1200-H36, 1200-H38

INDUSTRY APPLICATIONS

Electrical conductors, chemical storage tanks, food-grade utensils, HVAC insulation, reflective lighting panels, architectural interiors, packaging foil, fin stock, heat exchangers, cookware, nameplates

BUYER KEYWORDS

1200 channel supplier, 1200 channel dealer, 1200 channel distributor, 1200 channel importer, buy 1200 channel, 1200 channel price per kg.

LOCATION KEYWORDS

1200 channel Mumbai, 1200 channel Pune, 1200 channel Delhi, 1200 channel Chennai, 1200 channel Bengaluru, 1200 channel Hyderabad, 1200 channel Ahmedabad, 1200 channel Kolkata, 1200 channel Dubai, 1200 channel Abu Dhabi, 1200 channel Sharjah, 1200 channel Doha, 1200 channel Muscat, 1200 channel Riyadh, 1200 channel Jeddah, 1200 channel Kuwait City, 1200 channel New York, 1200 channel Los Angeles, 1200 channel Houston

Aluminium Alloy 1200 Channel – Equivalent Grades

European Standard	BS (OLD)	USA (AA)	Germany (DIN)	ISO	IS	Canadian
EN AW-1200	HE2	1200	Al99 (DIN 3.0205)	Al99.0	IS 737 – 1200	1200

Chemical Composition Of Aluminium Alloy 1200 Channels :

Alloy	Fe	Si	Mg	Mn	Cu	Zn	Ti	Cr	Each	Al
1200 (min)	—	—	—	—	—	—	—	—	—	99.00
1200 (max)	0.60	0.30	0.05	0.05	0.10	0.10	0.05	0.05	0.05	remainder

Mechanical Properties Of Aluminium Alloy 1200 Channels :

Alloy	Temper	UTS (MPa)		% Elongation
Alloy	Temper	Min	Max	0.5 mm – 0.8 mm	0.81 mm – 1.30 mm	1.30 mm – above
1200	O	40	55	35	38	40
	H14	85	105	14	16	18
	H24	90	110	12	14	16

Physical Properties of Aluminium 1200 Channel

Properties	Metric
Density	2.71 Mg/m³
Melting Point	643°C – 657°C
Specific Heat (100°C)	900 J/kg·K

OUR SPECIAL GRADES

1100	2014	2017	2024	3003
5086	5052	5754	5082	5083
6061	6063	6082
