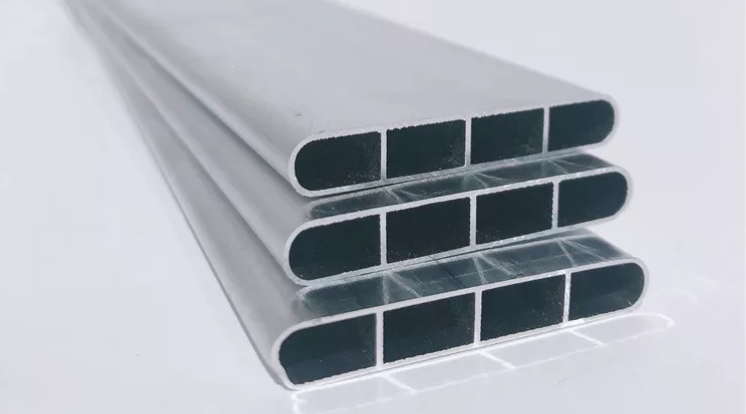

Aluminium 3003 Channels are manufactured from Aluminium Alloy 3003, a non-heat-treatable aluminium–manganese alloy widely known for its excellent corrosion resistance, good formability, and moderate strength. This alloy offers superior workability and durability, making it an ideal choice for applications where corrosion resistance, ease of fabrication, and long-term reliability are more critical than high mechanical strength. Aluminium 3003 Channels provide excellent machinability and outstanding forming characteristics, allowing efficient fabrication through bending, cutting, drilling, rolling, and welding processes. While the alloy does not achieve the high strength levels of heat-treatable aluminium grades, it delivers stable mechanical performance and enhanced resistance to atmospheric and chemical corrosion. Aluminium 3003 Channels are commonly supplied in O, H12, H14, and H16 tempers, ensuring consistent dimensional stability and surface quality for industrial and commercial applications. Aluminium 3003 Channels are widely used in architectural structures, heat exchangers, chemical equipment, food processing machinery, storage tanks, HVAC systems, transportation interiors, and general fabrication works. Their excellent corrosion resistance, lightweight nature, and ease of maintenance make them suitable for applications exposed to moisture, chemicals, and varying environmental conditions. We supply Aluminium 3003 Channels in custom sizes, lengths, thicknesses, tempers, and surface finishes as per client specifications, ensuring precise dimensional accuracy, consistent quality, and compliance with international standards for industrial, architectural, and commercial channel applications.
| European Standard | BS (OLD) | USA (AA) | Germany (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-3003 | — | 3003 | AlMn1Cu (DIN 3.0517) | AlMn1Cu | IS 737 – 3003 | 3003 |
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Each | Al |
|---|---|---|---|---|---|---|---|---|---|---|
| 3003 (min) | — | — | — | 1.00 | 0.05 | — | — | — | 0.05 | remainder |
| 3003 (max) | 0.70 | 0.60 | — | 1.50 | 0.20 | 0.10 | 0.10 | — | 0.15 | remainder |
| Alloy | Temper | UTS (MPa) | % Elongation | |||
| Min | Max | 0.5 mm – 0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||
| 3003 | O | 110 | 130 | 25 | 30 | 35 |
| H12 | 130 | 160 | 10 | 12 | 14 | |
| H14 | 145 | 185 | 6 | 8 | 10 | |
| H16 | 165 | 205 | 4 | 6 | 8 | |
| H18 | 185 | 225 | 3 | 4 | 6 | |
| Properties | Metric |
|---|---|
| Density | 2.73 Mg/m³ |
| Melting Point | 643°C – 654°C |
| Specific Heat (100°C) | 900 J/kg·K |
