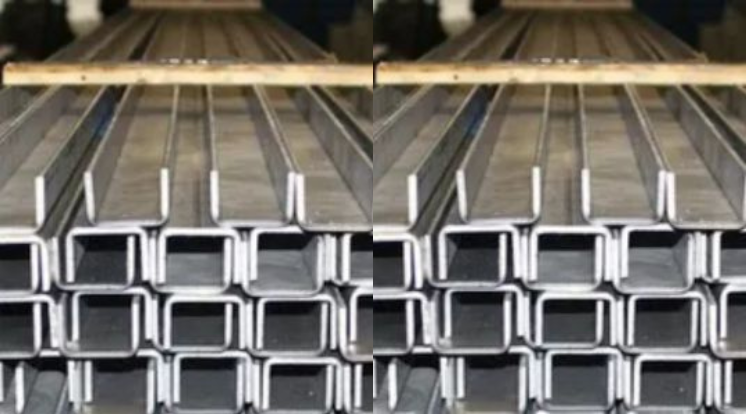

Aluminium 5052 Channels are manufactured from Aluminium Alloy 5052, a non-heat-treatable aluminium–magnesium alloy widely recognized for its excellent corrosion resistance, superior formability, and higher strength than 3xxx series alloys. This alloy offers outstanding resistance to marine atmospheres, saltwater, and industrial chemicals, making it an ideal choice for applications where durability, corrosion resistance, and long service life are critical. Aluminium 5052 Channels provide good machinability and excellent forming characteristics, allowing efficient fabrication through bending, cutting, drilling, rolling, and welding processes. While the alloy is not heat-treatable, it achieves high strength through work hardening and delivers stable mechanical performance with excellent surface finish. Aluminium 5052 Channels are commonly supplied in O, H12, H14, H16, and H32 tempers, ensuring consistent dimensional stability and performance across industrial and commercial applications. Aluminium 5052 Channels are widely used in marine structures, architectural components, heat exchangers, chemical equipment, food processing machinery, storage tanks, HVAC systems, transportation interiors, pressure vessels, and general fabrication works. Their superior corrosion resistance, lightweight nature, and excellent weldability make them especially suitable for environments exposed to moisture, chemicals, and harsh weather conditions. We supply Aluminium 5052 Channels in custom sizes, lengths, thicknesses, tempers, and surface finishes as per client specifications, ensuring precise dimensional accuracy, consistent quality, and compliance with international standards for marine, industrial, architectural, and commercial channel applications.
| European Standard | BS (OLD) | USA (AA) | Germany (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-5052 | — | 5052 | AlMg2.5 (DIN 3.3523) | AlMg2.5 | IS 737 – 5052 | 5052 |
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Each | Al |
|---|---|---|---|---|---|---|---|---|---|---|
| 5052 (min) | — | — | 2.20 | — | — | — | — | 0.15 | 0.05 | remainder |
| 5052 (max) | 0.40 | 0.25 | 2.80 | 0.10 | 0.10 | 0.10 | 0.15 | 0.35 | 0.15 | remainder |
| Alloy | Temper | UTS (MPa) | % Elongation | |||
| Min | Max | 0.5 mm – 0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||
| 5052 | O | 170 | 215 | 22 | 25 | 28 |
| H12 | 200 | 245 | 12 | 14 | 16 | |
| H14 | 215 | 260 | 10 | 12 | 14 | |
| H16 | 230 | 280 | 8 | 10 | 12 | |
| H18 | 260 | 310 | 6 | 8 | 10 | |
| Properties | Metric |
|---|---|
| Density | 2.68 Mg/m³ |
| Melting Point | 607°C – 638°C |
| Specific Heat (100°C) | 880 J/kg·K |
| 1100 | 2014 | 2017 | 2024 | 3003 |
| 5086 | 5052 | 5754 | 5082 | 5083 |
| 6061 | 6063 | 6082 |
