Aluminium 6061 Channels

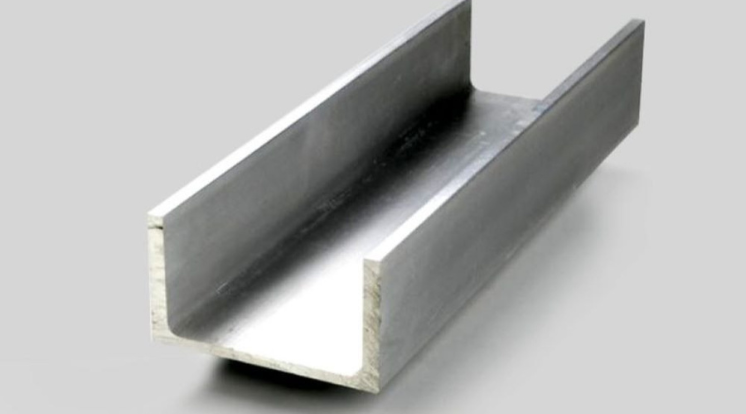

Aluminium 6061 Channels are manufactured from Aluminium Alloy 6061, a heat-treatable aluminum–magnesium–silicon alloy widely recognized for its excellent mechanical strength, good corrosion resistance, and high versatility across structural and industrial applications. This alloy provides outstanding resistance to atmospheric corrosion, moderate chemical exposure, and general wear, making it ideal for applications where durability, structural integrity, and long service life are required. Aluminium 6061 Channels offer good machinability, weldability, and formability, enabling efficient fabrication through bending, cutting, drilling, rolling, and welding processes. Being a heat-treatable alloy, 6061 can achieve higher strength levels through solution heat treatment and aging, providing stable mechanical performance with a smooth surface finish. Aluminium 6061 Channels are commonly supplied in T4, T5, T6, and T651 tempers, ensuring consistent dimensional stability and reliable performance across industrial, construction, and transportation applications. Aluminium 6061 Channels are widely used in structural frameworks, transportation equipment, automotive components, aerospace parts, marine structures, and general fabrication works. Their combination of high strength, corrosion resistance, lightweight nature, and excellent weldability makes them especially suitable for environments exposed to mechanical stress, outdoor conditions, and moderate chemical exposure. We supply Aluminium 6061 Channels in custom sizes, lengths, thicknesses, tempers, and surface finishes as per client specifications, ensuring precise dimensional accuracy, consistent quality, and compliance with international standards for structural, industrial, marine, and commercial channel applications.

Aluminium Alloy 6061 Channels Specification

Standards : ASTM B221, ASTM B209M, EN 573, EN 485
Thickness : 0.9 mm – 7 mm
Width : 10 mm to 200 mm (Custom Channel Profiles Available)
Length : : Up to 6.5 meters (Coated & Anodized), up to 5 meters (Mill Finish)
Finish : Mill Finish, Customer-Specific Finish
Type : Hot-Rolled (HR) / Cold-Rolled (CR)
Temper : T4, T5, T6, T651
Surface : Anodized, Polished, Brushed, Matte, Sand Blasted, Powder Coated, PVDF Coated

KEY FEATURES

High strength, excellent corrosion resistance, outstanding weldability, superior machinability, stable heat treatable behaviour, fatigue resistance, excellent dimensional stability, ideal for CNC machining and structural fabrication.

PRODUCT RANGE

6061 channel in T6/T651/T4 heat treated and structural tempers.

GLOBAL EQUIVALENTS

AA6061 (USA), ASTM B209/B221/B241/B308 6061, UNS A96061, AMS 4027/4026, EN AW-6061, EN 573-3, EN 485-2/9 (Europe), ISO AlMg1SiCu, DIN 3.3211 / AlMg1SiCu (Germany), BS HE20 / HE30 (UK), BS EN 485 (UK), AFNOR A-G1MgSiCu (France), UNI 6061 (Italy), JIS H4000 A6061, JIS H4040 A6061-T6/T651 (Japan), GB/T 3190 6061, LC7, LY12-6061 (China), KS D6006 6061 (Korea), TSE EN 6061 (Turkey), SANS EN 6061 (South Africa), NMX-H 6061 equivalent (Mexico), IS 737 (India – wrought aluminium), IS 52000 (India – rolled aluminium standard), Hindalco 6061, Jindal 6061, Russian equivalents: AD33, 6061 Russian equivalent, GCC equivalents: 6061 UAE grade, 6061 Oman grade, 6061 Saudi grade.

TEMPERS

6061-O, 6061-T4, 6061-T451, 6061-T6, 6061-T651, 6061-T6511, 6061-T62, 6061-T8, 6061-T9.

INDUSTRY APPLICATIONS

Aerospace components, automotive chassis, structural frames, CNC machined parts, transport equipment, architectural sections, marine hardware, defence applications, pressure vessel components, heat-treated precision parts.

BUYER KEYWORDS

6061 channel dealer, 6061 channel distributor, buy 6061 channel, 6061 alloy T6 stock, wholesale 6061 price, bulk 6061 importer.

LOCATION KEYWORDS

6061 channel Mumbai, 6061 channel Pune, 6061 channel Delhi, 6061 channel Chennai, 6061 channel Bengaluru, 6061 channel Hyderabad, 6061 channel Ahmedabad, 6061 channel Surat, 6061 channel Dubai, 6061 channel Abu Dhabi, 6061 channel Doha, 6061 channel Riyadh, 6061 channel Muscat.

Aluminium Alloy 6061 Channel – Equivalent Grades

European Standard	BS (OLD)	USA (AA)	Germany (DIN)	ISO	IS	Canadian
EN AW-6061	—	6061	AlMg1SiCu (DIN 3.3210)	AlMg1SiCu	IS 6061 – 6061	6061

Chemical Composition Of Aluminium Alloy 6061 Channels :

Alloy	Fe	Si	Mg	Mn	Cu	Zn	Ti	Cr	Each	Al
6061 (min)	0.7	0.4	0.8	0.15	0.2	—	0.15	0.04	0.05	remainder
6061 (max)	1.0	0.8	1.2	0.35	0.4	0.25	0.15	0.35	0.05	remainder

Mechanical Properties Of Aluminium Alloy 6061 Channels :

Alloy	Temper	UTS (MPa)		% Elongation
Alloy	Temper	Min	Max	0.5 mm – 0.8 mm	0.81 mm – 1.30 mm	1.30 mm – above
6061	O	90	150	18	20	22
	T4	215	260	10	12	14
	T6	275	310	8	10	12
	T651	290	320	6	8	10
	T6511	295	325	5	6	8

Physical Properties of Aluminium 6061 Channel

Properties	Metric
Density	2.70 Mg/m³
Melting Point	582°C – 652°C
Specific Heat (100°C)	900 J/kg·K
