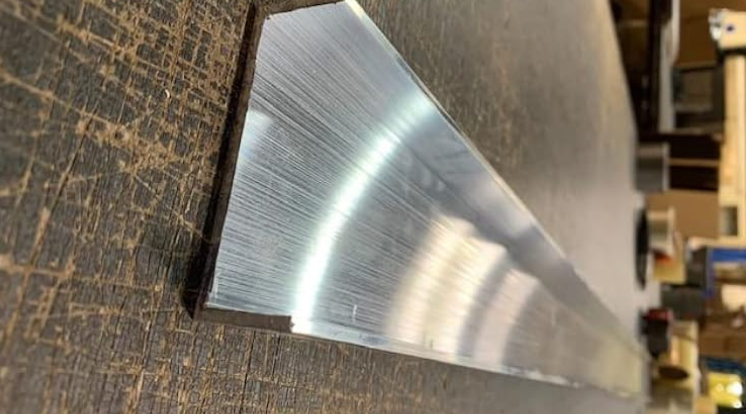

Aluminium 6063 Channels

Aluminium 6063 Channels are manufactured from Aluminium Alloy 6063, a heat-treatable aluminum–magnesium–silicon alloy widely recognized for its excellent corrosion resistance, good mechanical strength, and superior surface finish. This alloy is ideal for architectural, structural, and general industrial applications, providing durability, dimensional stability, and long service life. Aluminium 6063 Channels offer excellent machinability, weldability, and formability, allowing efficient fabrication through bending, cutting, drilling, rolling, and welding processes. Being a heat-treatable alloy, 6063 can achieve moderate strength levels through solution heat treatment and aging, delivering stable mechanical performance with a smooth, high-quality surface finish. Aluminium 6063 Channels are commonly supplied in T4, T5, and T6 tempers, ensuring consistent dimensional accuracy and reliable performance across industrial, architectural, and commercial applications. Aluminium 6063 Channels are widely used in architectural frameworks, window and door frames, transportation structures, solar panel frames, and general fabrication works. Their combination of corrosion resistance, lightweight nature, aesthetic surface finish, and good weldability makes them particularly suitable for outdoor, structural, and decorative applications. We supply Aluminium 6063 Channels in custom sizes, lengths, thicknesses, tempers, and surface finishes as per client specifications, ensuring precise dimensional accuracy, consistent quality, and compliance with international standards for architectural, industrial, and commercial channel applications.

Aluminium Alloy 6063 Channels Specification

Standards : ASTM B221, ASTM B209M, EN 573, EN 485
Thickness : 0.9 mm – 7 mm
Width : 10 mm to 200 mm (Custom Channel Profiles Available)
Length : : Up to 6.5 meters (Coated & Anodized), up to 5 meters (Mill Finish)
Finish : Mill Finish, Customer-Specific Finish
Type : Hot-Rolled (HR) / Cold-Rolled (CR)
Temper : T4, T5, T6, T651
Surface : Anodized, Polished, Brushed, Matte, Sand Blasted, Powder Coated, PVDF Coated

KEY FEATURES

Excellent corrosion resistance, good mechanical strength, superior surface finish, excellent anodizing capability, outstanding weldability, high dimensional stability, suitable for architectural and structural applications, ideal for extrusion and CNC machining.

PRODUCT RANGE

6063 channel in T5/T6/T651 heat treated and architectural/structural tempers.

GLOBAL EQUIVALENTS

AA6063 (USA), ASTM B209/B221/B241/B308 6063, UNS A96063, EN AW-6063, EN 573-3, EN 485-2/9 (Europe), ISO AlMg0.7Si, DIN 3.3206 / AlMg0.7Si (Germany), BS HE15 / HE20 (UK), AFNOR A-G0.7MgSi (France), UNI 6063 (Italy), JIS H4000 A6063, JIS H4040 A6063-T5/T6 (Japan), GB/T 3190 6063, LC6, LY12-6063 (China), KS D6006 6063 (Korea), TSE EN 6063 (Turkey), SANS EN 6063 (South Africa), NMX-H 6063 equivalent (Mexico), IS 737 (India – wrought aluminium), IS 4923 (India – rolled aluminium standard), Hindalco 6063, Jindal 6063, Russian equivalents: AD31, 6063 Russian equivalent, GCC equivalents: 6063 UAE grade, 6063 Oman grade, 6063 Saudi grade.

TEMPERS

6063-O, 6063-T4, 6063-T5, 6063-T6, 6063-T651, 6063-T6511.

INDUSTRY APPLICATIONS

Architectural frameworks, window and door frames, curtain walls, decorative trims, transportation structures, marine applications, furniture components, HVAC systems, lightweight structural fabrication, general-purpose industrial and commercial applications.

BUYER KEYWORDS

6063 channel dealer, 6063 channel distributor, buy 6063 channel, 6063 alloy T5/T6 stock, wholesale 6063 price, bulk 6063 importer.

LOCATION KEYWORDS

6063 channel Mumbai, 6063 channel Pune, 6063 channel Delhi, 6063 channel Chennai, 6063 channel Bengaluru, 6063 channel Hyderabad, 6063 channel Ahmedabad, 6063 channel Surat, 6063 channel Dubai, 6063 channel Abu Dhabi, 6063 channel Doha, 6063 channel Riyadh, 6063 channel Muscat.

Aluminium Alloy 6063 Channel – Equivalent Grades

European Standard	BS (OLD)	USA (AA)	Germany (DIN)	ISO	IS	Canadian
EN AW-6063	—	6063	AlMg0.7Si (DIN 3.3206)	AlMg0.7Si	IS 6063 – 6063	6063

Chemical Composition Of Aluminium Alloy 6063 Channels :

Alloy	Fe	Si	Mg	Mn	Cu	Zn	Ti	Cr	Each	Al
6063 (min)	0.35	0.2	0.45	0.10	0.0	—	0.05	0.02	0.05	remainder
6063 (max)	0.7	0.6	0.9	0.1	0.1	0.1	0.1	0.1	0.05	remainder

Mechanical Properties Of Aluminium Alloy 6063 Channels :

Alloy	Temper	UTS (MPa)		% Elongation
Alloy	Temper	Min	Max	0.5 mm – 0.8 mm	0.81 mm – 1.30 mm	1.30 mm – above
6063	O	90	140	18	20	22
	T4	175	215	10	12	14
	T5	200	240	8	10	12
	T6	210	250	6	8	10

Physical Properties of Aluminium 6063 Channel

Properties	Metric
Density	2.70 Mg/m³
Melting Point	608°C – 650°C
Specific Heat (100°C)	900 J/kg·K
